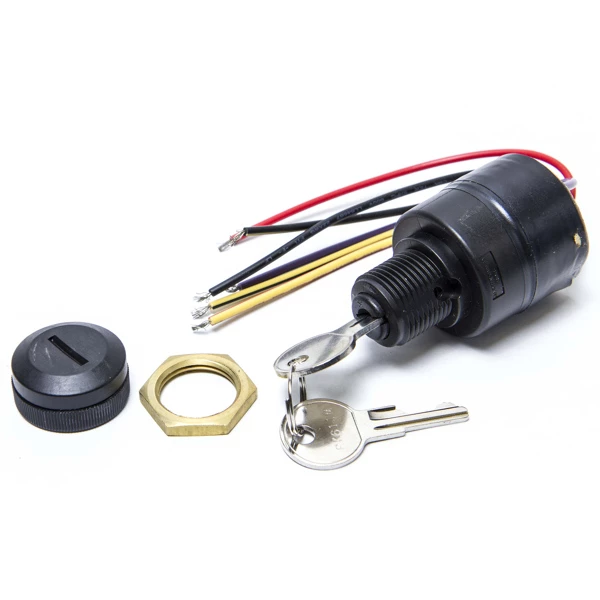

Sierra MP41090-1 0804B Switch 16 AWG

Key Features:

• Push to choke
• Maximum corrosion protection – eliminates oxidation
• Inner seal between cylinder lock and contact plate
• Non-conductive housing eliminates potential shorts
• 20 Amp rating
• 2, 3 and 4 position switches
• Switches for magneto and conventional ignitions

Additional Details:

• Material: Polyester
• Length: Short: 5/8” maximum panel thickness
• Terminal Type: 5 color code wires
• Back up Nut: Plastic
• Face Nut: Knurled black plastic with rubber cap
• Hole Size: 7/8”
• Rated Ignition: 15 Amp @ 12v DC
• Rated Solenoid: 30 Amp @ 12v DC
• Rated Accessory: 15 Amp @ 12v DC
• Note: Colors on switch wires match factory color codes
