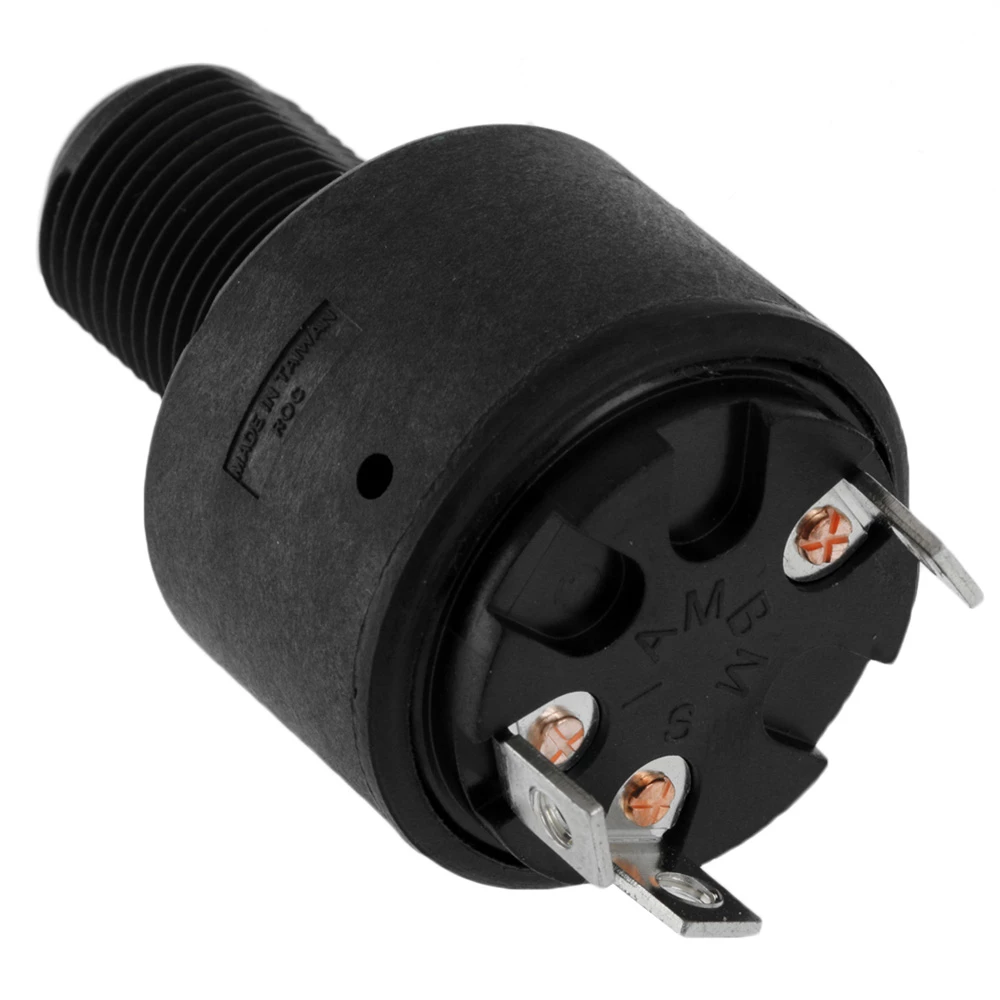

Sierra MP41030 Ignition Switch

Switches for magneto and conventional ignitions

Looking for Sierra spare parts? You’re on the right page. The
Sierra MP41030 Ignition Switch‘s durable
construction protects it from bumps, scratches, and corrosion.
Built tough for the harsh marine elements.

Sierra MP41030 Ignition Switch Features:

• Maximum corrosion protection – eliminates oxidation
• Inner seal between cylinder lock and contact plate
• Non-conductive housing eliminates potential shorts
• 20 Amp rating
• 2, 3 and 4 position switches
• Switches for magneto and conventional ignitions

Sierra MP41030 Ignition Switch Specifications:

• Back Up Nut: Brass
• Face Nut: Knurled Black Plastic with Rubber Cap
• Hole Size: 7/8′
• Length: Short: 1 1/8′ maximum panel thickness
• Material: Polyester
• Rated Ignition: 15 Amp @ 12v DC
• Rated Solenoid: 30 Amp @ 12v DC
• Terminal Type: 3 Screw Tab
• Switch Positions: Off – Run – Start
• TYPE: Conventional
• Replaces: Seadog 420366-1
