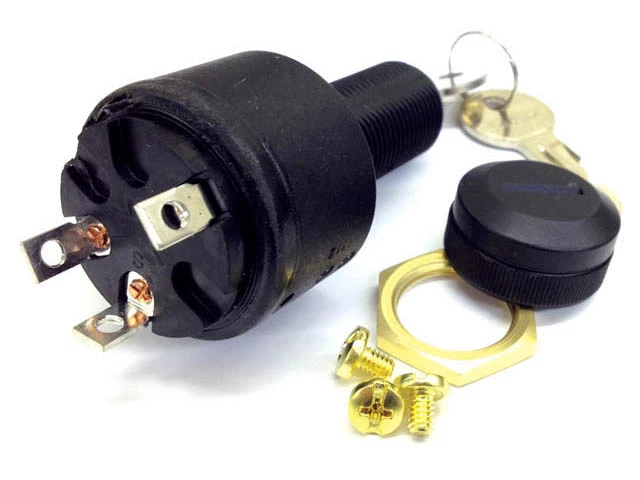

Sierra MP39200 Switch Ignition

Key Features:

• Maximum corrosion protection – eliminates oxidation
• Inner seal between cylinder lock and contact plate
• Non-conductive housing eliminates potential shorts
• 20 Amp rating
• 2, 3 and 4 position switches
• Switches for magneto and conventional ignitions

Additional Details:

• Back Up Nut: Brass
• Face Nut: Knurled Black Plastic with Rubber Cap
• Hole Size: 7/8′
• Length: Long: 1 1/8′ maximum panel thickness
• Material: Polyester
• Rated Ignition: 15 Amp @ 12v DC
• Rated Solenoid: 30 Amp @ 12v DC
• Terminal Type: 3 Screw Tab
• Switch Positions: Off – Run – Start
• TYPE: Conventional

The Sierra MP39200 Ignition Switch Replaces:

Cole-Hersee

• M850BP

Seadog

• 420365-1
